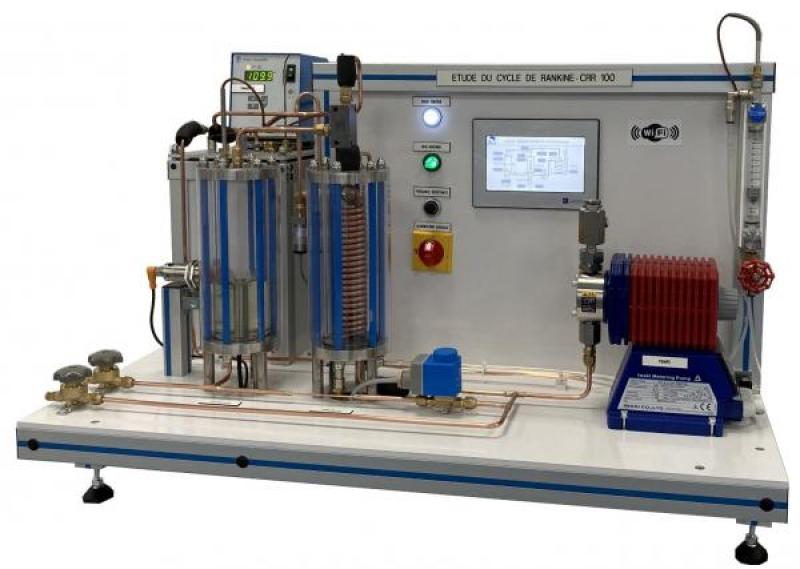

Teaching suggested applications*

-          To understand and trace thermodynamic cycles experimentally.

-          Study of the Rankine cycle.

-          Plot of combined cycles on enthalpic diagram.

-          Calculation of the cooling capacities at the evaporator, at the condenser at the ejecto-compressor, as well as at the steam generator.

-          Calculate the heat balances at the exchangers and the operating efficiencies.

-          Calculation of the efficiencies.

1. Boiler

Volume 0,68 l

Liquid pre-heater, copper coil 1/4²

2. Immersion circulator

Volume of the tank : 5 l

Heat transfer fluid: Oil

Heating power : 2 kW

3. Ejector-compressor

Suction and compression of the refrigerant steam

4. Condenser

Glass casing - Copper exchanger

Cooled by water

5. A metering pump with variable flow rate

Equipped with nonreturn valves at the suction and discharge

Maximum pressure: 10 bar

Maximum flow rate: 20 l/h

6. Evaporator

Glass casing

Cartridge heater with adjustable power

Heating power : 200W

• Electrical supply : 230 Vac – 50 Hz – 20 A
• Electrical network : 3 phase(s) + Neutral + Earth.
• Water supply : 4 L/min – 1bars
• Water drain : on the floor
